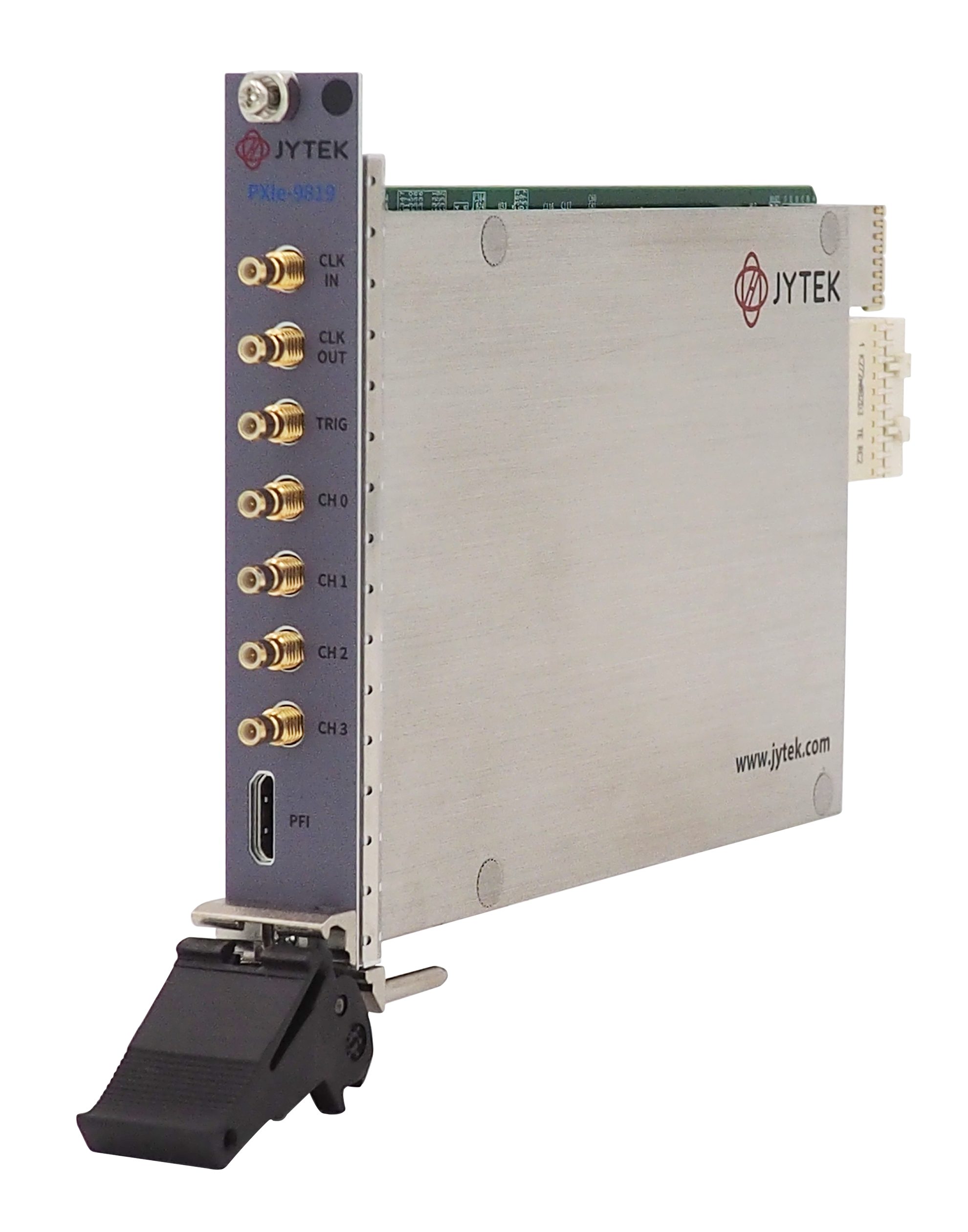

PXIe-9819(PN: JY2370729-01)  |  4-CH, 250 MS/s, 16-bit, ±10 V, BW:125 MHz PXIe Digitizer

Main Features

• 4 simultaneous analog inputs

• 16-bit resolution

• Maximum 250 MS/s sample rates

• Programmable input voltage range of ±0.5V, ±1V, ±5V, or ±10V

• Software selectable 50 Ω or 1 MΩ input impedance

• Up to 110 MHz bandwidth for analog input

• Up to 0.3% of full scale DC accuracy

• Scatter-Gather DMA data transfer for high speed data streaming

• Supports Multi-board synchronization

• 2 GB onboard storage memory

Overview

The JY-9819 PXI Express digitizer provides high speed, high quality data acquisition. Each of 4 input channels supports up to 250 MS/s sampling, with up to 16-bit resolution. This allows simultaneous recording of signals on all channels with no inter-channel phase delay. The extremely large onboard memory enables long recording times even at the highest sampling rates.

The PXIe-9819 features flexible input ranges of ±0.5 V, ±1 V,  ±5 V, and ±10 V along with software selectable 50 Ω or 1 MΩ input impedance. Four high resolution 16-bit A/D converters combine with a low-noise/high bandwidth analog front-end to make the PXIe-9819 perfect for applications like radar signal acquisition, fiber optic sensing, and many others.
