PXIe-9818(PN: JY1233714-01)  |  8-CH 16-Bit 125 MS/s High-Speed PXIe Digitizer

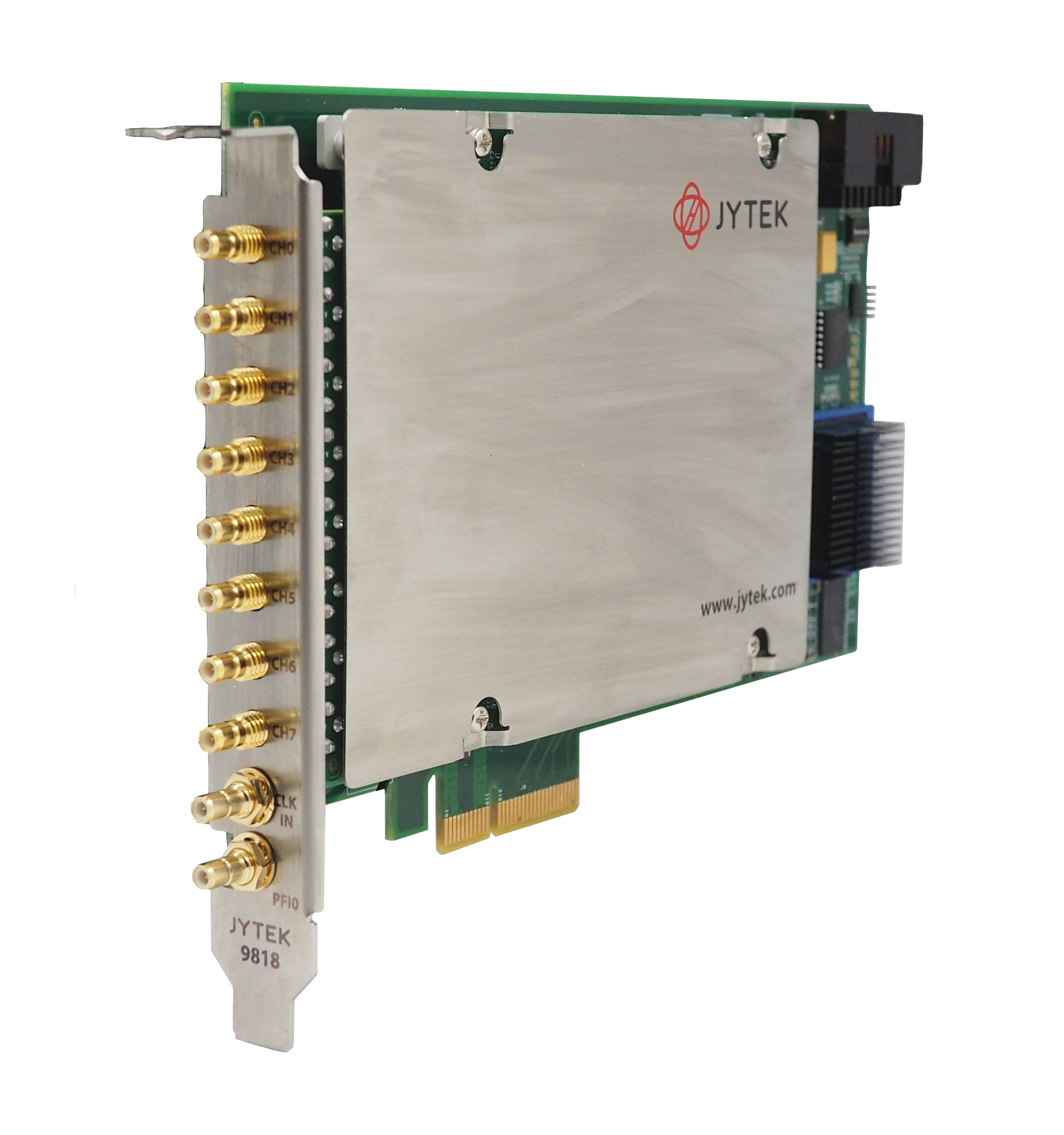

PCIe-9818(PN: JY2267045-01)  |  8-CH 16-Bit 125 MS/s High-Speed PCIe Digitizer

Main Features

• DC accuracy: 715 ppm

• 16 bits high resolution

• 8 simultaneous analog inputs

• Maximum 125 MS/s sample rates for JY-9818

• Up to 50 MHz bandwidth for analog input

• 512 MB onboard storage memory

• Programmable input voltage range of ±0.5 V, ±1 V, ±5 V, or ±10 V

• Scatter-Gather DMA data transfer for high speed data streaming

• Supports external reference clock (10MHz)

• Software selectable 50 Ω or 1 MΩ input impedance




Overview

The JY-9818 PXI Express digitizer provides high speed, high quality data acquisition. Each of 4 input channels supports up to 125 MS/s sampling, with up to 715 ppm DC accuracy and 16 bits high resolution. This allows simultaneous recording of signals on all channels with no inter-channel phase delay. The extremely large onboard memory enables long recording times even at the highest sampling rates.

The JY-9818 features flexible input ranges of ±0.5 V,±1 V, ±5 V, and ±10 V along with software selectable 50  Ω or 1 MΩ input impedance. Eight high resolution 16-bit A/D converters combine with a low-noise/high bandwidth analog front-end to make the PXIe-9818 perfect for applications like radar signal acquisition, fiber optic sensing, and many others.
