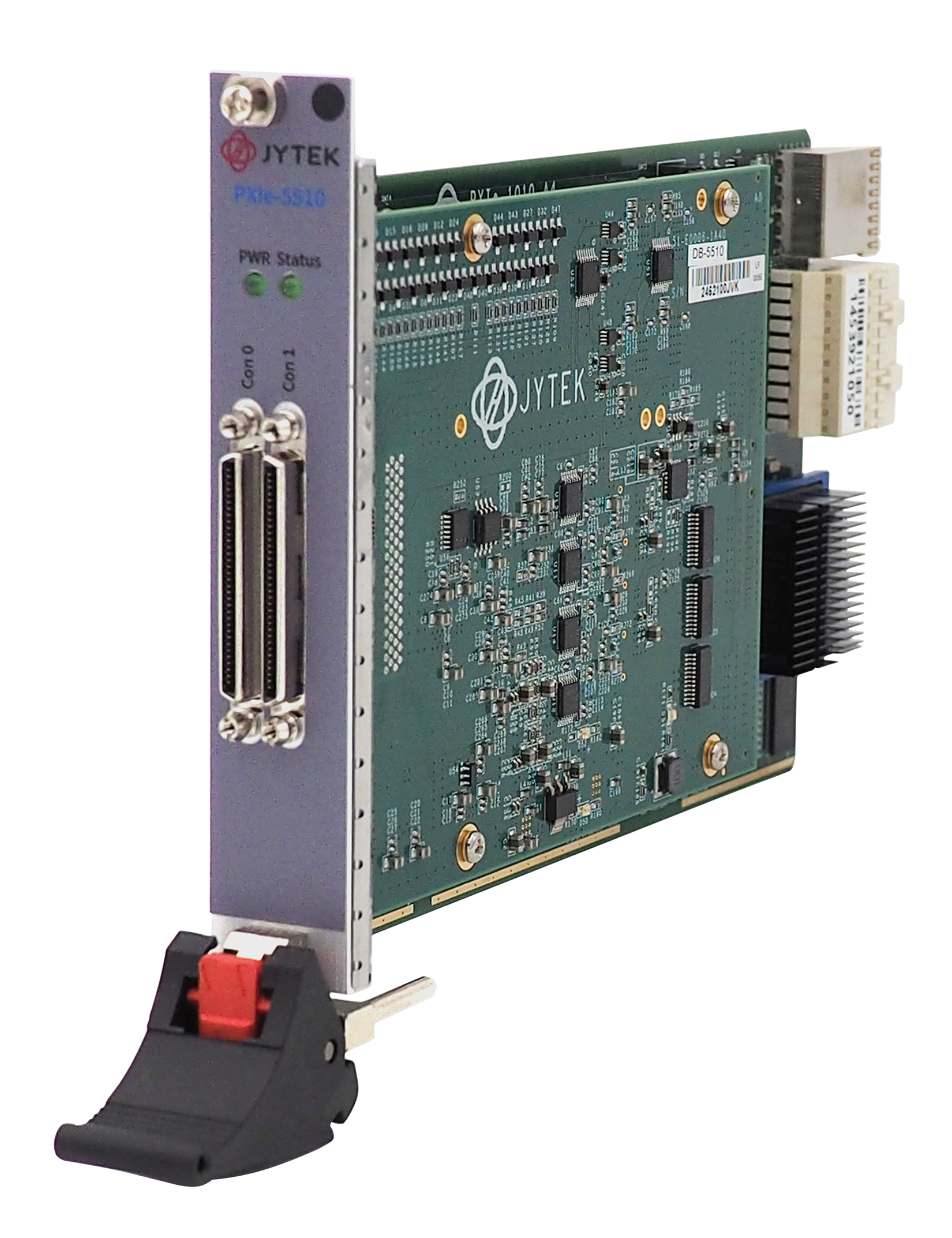

PXIe-5510 (PN: JY2005510-01)  |  32-ch AI (18 bits, 2 MS/s), 4-ch AO (16 bits, 2.86MS/s), 48 DIO, PXIe Multifunction I/O Card

PXIe-5511 (PN: JY2005511-01)  |  32-ch AI (18 bits, 1.25 MS/s), 4-ch AO (16 bits, 2.86 MS/s), 48 DIO, PXIe Multifunction I/O Card

PCIe-5510 (PN: JY2105510-01)  |  32-ch AI (18 bits, 2 MS/s), 4-ch AO (16 bits, 2.86MS/s), 48 DIO, PCIe Multifunction I/O Card

PCIe-5511 (PN: JY2105511-01)  |  32-ch AI (18 bits, 1.25 MS/s), 4-ch AO (16 bits, 2.86 MS/s), 48 DIO, PCIe Multifunction I/O Card

USB-5510 (PN: JY2105510-02)  |  32-ch AI (18-Bit, 2 MS/s), 4-ch AO (16-Bit, 2.86MS/s), 48DIO PCIe Multifunction I/O Module
USB-5511 (PN: JY2105511-02)  |  32-ch AI (18-Bit, 1.25 MS/s), 4-ch AO (16-Bit, 2.86 MS/s), 48DIO PCIe Multifunction I/O Module

TB-68 (PN: JY2000068-04)  |  68-Pin SCSI  Shielded I/O Connector Block

ACL-2006868-1 (PN: JY2006868-01)  |  1M 68pin VHDCI68M-SCSI68M cable

ACL-2006868-2 (PN: JY2006868-02)  |  2M 68pin VHDCI68M-SCSI68M cable

Main Features

• High accuracy: 150 ppm

• 18 bits ADC

• 32 single-ended or 16 differential 18-bit analog input channels

• 7 voltage ranges:±10V/±5V/±2V/±1V/±0.5V/±0.2V/±0.1V

• 64M samples FIFO buffer for analog input

• 4 simultaneous 16-bit analog output channels

• 32M sample FIFO buffer for analog output

• 6 ports digital IO, 8 channels per port

• 4 general 32-bit timer/counter

• DMA for analog input and output

• Analog/Digital/Software Trigger


  ‍

Overview

The USB/PCIe/PXIe-5500 Series is a family of multifunction data acquisition boards, which can run on PCIe, PXIe, TXI (Thunderbolt) and USB buses (coming soon). Depending on the model number, a 5500 series provide different AI channels, AO channels, sampling rate. USB 5500 Series only supports USB 3.0 bus mode.
